Bmw x5 e53 fuses and relays with diagrams
Main fuse box in the passenger compartment bmw e53

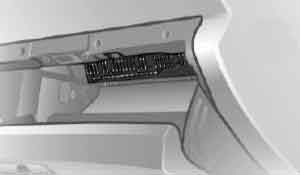

The fuses in the passenger compartment are located behind the rear wall of the glove compartment (glove box) and are located in 2 rows. The third over-the-horizon row is spare parts.

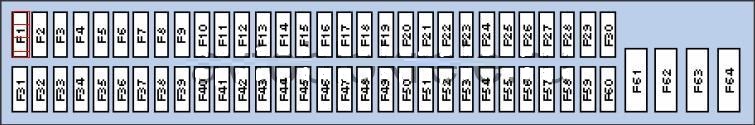

General layout
Description table
|
1 |
(5A) Data bus connector, instrument cluster |
|
2 |
(5A) Lighting control unit |
|
3 |
(5A) system of heating / air conditioning (02/01) |
|
4 |
(5A) Ignition coil relay |
|
5 |
(7.5A) Alternator, engine oil level sensor, fuse / relay box cooling fan motor |
|
6 |
(5A) Interior rearview mirror, parking control module (02/04), tire pressure monitor control module |
|
7 |
(5A) Ignition coil relay |
|
8 |
(5A) Illumination combination of devices |
|
9 |
(5A) Airbag sensor, brake light switch (brake pedal position sensor), lighting control module |
|
10 |
(15A) Audible alarm |
|
11 |
(5A) Immobilizer |
|
12 |
(5A) Instrument cluster illumination, steering wheel position sensor |
|
13 |
(5A) Anti-theft system, interior rearview mirror |
|
14 |
(5A) Multifunction control module 1 |
|
15 |
(5A) Tire pressure monitor control module (02/04) |
|
16 |
(5A) Castle ignition |
|
17 |
(5A) Interior lighting control module |
|
19 |
- |
|
19 |
- |
|
20 |
(30A) Driver's door control module |
|
21 |
(30A) Power seats |
|
22 |
- |
|
23 |
- |
|
24 |
(30A) Passenger door control module |
|
25 |
(25A) Charging connector , cigarette lighter |
|
26 |
(30A) Main ignition circuit relay |
|
27 |
(20A) Multifunction control module 1 |
|
28 |
(30A) Headlight washers |
|
29 |
(10A) Pillow Safety |
|
30 |
- |
|
31 |
(5A) Engine management |
|
32 |
(5A) Main circuit relay, multifunction control module 2 |
|
33 |
(5A) Cigarette lighter fuse |
|
34 |
(7.5 A) Heated rear window, heater / air conditioner |
|
35 |
- |
|
36 |
(5A) Charging connector |
|
37 |
(5A) Multifunction control module 2 |
|
38 |
- |
|
39 |
(5A) Clutch pedal position switch, immobilizer |
|
40 |
(30A) cleaner windshield glass |
|
41 |
(5A) Rear window wiper / washer , multifunction control module 1 |
|
42 |
(5A) Lamps lighting interior |
|
43 |
(5A) The combination of instruments |
|
44 |
(5A) SRS , power seats |
|
45 |
(5A) The combination of instruments |
|
46 |
(7.5A) Transfer case control unit |
|
47 |
(25A) Fuel pump relay |
|
48 |
(7.5A) heater / air conditioner |
|
49 |
- |
|
50 |
- |
|
51 |
(10A) Anti-lock braking system ( ABS ), engine management system |
|
52 |
(15A) Diagnostic connector (DLC) (^> 09/00) |
|
53 |
(25A) Multifunction control module 2 |
|
54 |
(15A) Transmission control module (ECM) |
|
55 |
(30A) Anti-lock braking system ( ABS ) |
|
56 |
- |
|
57 |
(15A) Suspension control unit |
|
58 |
(20A) Luke |
|
59 |
(20 A) Additional heater |
|
60 |
(30A) Multifunction control module 1 |
|
61 |
(50A) Cooling fan motor |
|
62 |
(50A) Discharge air pump relay |
|
63 |
(50A) Anti-lock braking system ( ABS ) |
|
64 |
(50A) heater / air conditioner |
2 fuses 33 and 25 are responsible for the cigarette lighter. Be careful.

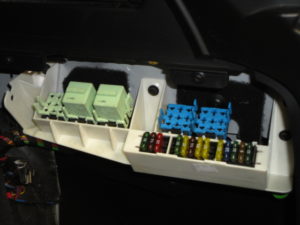

As you can see from the photo, relays are located on top of this block. Here's a general outline.
|
1 |
Booster Fuel Pump Relay - Diesel |
|
2 |
- |
|
3 |
interior lighting control unit |
|
4 |
Relay audio signal |
|
F103 |
- |
|
F104 |
(10A) Glow plugs |
|
F105 |
(80A) alarm , locking plugs - 4.4 / 4.6 (02/02) |
|
F106 |
(50A) Ignition switch, lighting control module |
|
F107 |
(50A) Lighting control unit |
Relay and fuse box in the trunk of a bmw x5 e53
To access them, grasp the door handle on the right side panel from above and pull it down. There will also be a specification for the BMW X5 E53 with an indication of the rated current and protected consumers.
|
1 |
Rear seat heater relay |
|
2 |
Heated rear window relay |
|
3 |
Audio system relay |
|
4 |
Tailgate / tailgate opener drive relay - lower |
|
five |
Seat Power Relay ( Rear ) |
|
6 |
Tailgate / Tailgate Opening Actuator Relay - Upper |
|
F72 |
(30A) Audio system , navigation system |
|
F73 |
(7.5A) Ignition coil relay |
|
F74 |
(10A) Telephone |
|
F75 |
(5A) Audio system , navigation system |
|
F76 |
- |
|
F77 |
(30A) Power rear seats |
|
F78 |
(20A) Trailer electrical connector |
|
F79 |
(7.5A) Suspension control unit |
|
F80 |
(20A) Ignition coil relay |
|
F81 |
(20A) Rear window wiper / washer |
|
F82 |
- |
|
F83 |
(20A) Charging connector - rear |
|
F84 |
(7.5A) Trunk lid / tailgate lock |
|
F85 |
(30A) Heated rear window |
|
F86 |
(5A) Additional heater |
|
F87 |
(30A) Active suspension compressor |
A single arrangement of the relay is also possible, for example the relay of the compressor pump and the compressor of the air suspension pump.
Relay in the mounting block
Located under the hood
The individual relay elements are located in the mounting block, under the hood (horn relay, glow plugs, fuel pump relay, headlight washer relay, etc.). There may and may be fuses, depending on the equipment.
Matthew B (Friday, 21 July 2023 04:06)
Hey Dustin Lynn, i'd be happy to help you with troubleshooting the issues that you're facing with your e53. My mail, pctechrepair159@gmail.com.
This is for Dustin only! All others will be shot (ingored).
Dustin Lynn (Tuesday, 18 July 2023 01:55)
Hello I'm having a low battery issue. I've changed alternator 2x and installed new battery each time but still alternator isn't charging. I've checked fuses and connections. Any help would greatly be appreciated. Thank you
Nico (Sunday, 12 March 2023 19:17)

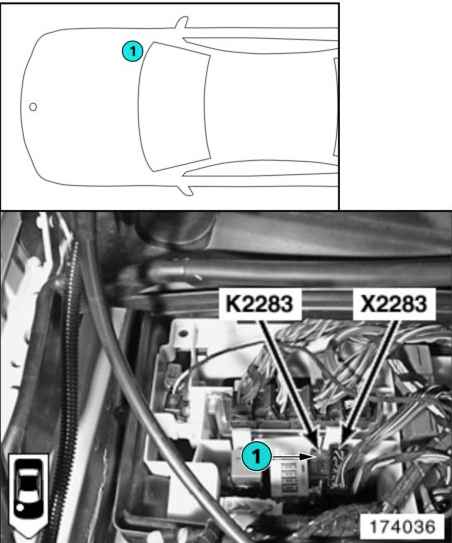

K2283 Glow plug relay
