BMW X3 E83 Diagnostic Trouble Codes
Diagnostic trouble codes
1. Make sure the sensor is working properly
position of the gas pedal.
2. Switch on the ignition, the engine is not
run.
3. Wait 3-5 seconds.
4. Within 5 seconds, perform the following operations:
fully depress the gas pedal;
completely release the gas pedal;
wait 7 seconds;
fully press the gas pedal.
5. After about 10 seconds
malfunction indicator starts
blink.
6. Count the number of flashes of the malfunction indicator.
7. Determine the fault according to the code table.

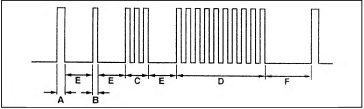

8. Each fault code (fig.
17.116) consists of four groups
flashes from one or more:
the first group of flashes indicates
“Thousands” of the malfunction code (A);
the second group of flashes means
“Hundreds” of the malfunction code (B);
the third group of flashes means
“Tens” of the malfunction code (C);
the fourth group of flashes denotes the "ones" of the DTC
(D);
ten flashes in a group correspond to the number “0”;
a short pause separates each
a group of fault codes (E);
a long pause separates the trouble codes (F);
9. Read all fault codes and
fix them (write them down). Switch off ignition
Figure 17.116 shows an example of a malfunction code
“P1130”.
EOBD / BMW / Malfunction / Possible causes of malfunction
P1041 10334 Control unit for variable valve timing, bank 1 - EEPROM error
Phase change system control unit gas distribution
P1042 10334 The control unit for the variable valve timing system, bank 1 - RAM error
Phase change system control unit gas distribution
P1043 10334 Control unit for variable valve timing, bank 1 - ROM error
Phase change system control unit gas distribution
P1044 10335 The control unit for the variable valve timing system, bank 2 - EEPROM error
Phase change system control unit gas distribution
P1045 10335 Control unit for variable valve timing, bank 2 - RAM error
Phase change system control unit gas distribution
P1046 10335 The control unit for the variable valve timing system, bank 2 - ROM error
Phase change system control unit gas distribution
P1047 10336 Control circuit of the variable valve timing system, bank 1 - high input signal
Wiring, connections
P1048 10336 Control circuit of the variable valve timing system, bank 1 - low input signal
Wiring, connections
P1049 10336 Control circuit of the variable valve timing system, bank 1 - short circuit in the circuit
Wiring, connections
P1050 10336 Control circuit of the variable valve timing system, bank 1 - electrical circuit malfunction
Wiring, connections, control box
variable valve timing system
P1051 10337 Control circuit of the variable valve timing system, bank 2 - high input signal
Wiring , connections
P1052 10337 Control circuit of the variable valve timing system, bank 2 - low input signal
Wiring, connections
P1053 10337 Control circuit of the variable valve timing system, bank 2 - short circuit in the circuit
Wiring, connections
P1054 10337 Control circuit of the variable valve timing system, bank 2 - electrical circuit malfunction
Wiring, connections, control box variable valve timing system
P1055 10338 Control motor of the change system
valve timing, bank 1 - high voltage nutrition Wiring, connections
P1056 10338 Control motor of the change system
valve timing, bank 1 - low voltage nutrition Wiring, connections
P1057 10338 Control motor of the change system
valve timing, bank 1 - circuit malfunction supply voltage
Wiring, connections
P1058 10339 Control motor of the change system
valve timing, bank 2 - high voltage nutrition
Wiring, connections
P1059 10339 Control motor of the change system
valve timing, bank 2 - low voltage nutrition
Wiring, connections
P1060 10339 Control motor change system
valve timing, bank 2 - circuit malfunction supply voltage
Wiring, connections
P1061 10341 Variation in valve timing ( VVT ), bank 1 -
emergency mode ( Limp - Home ) - electrical circuit malfunction
Wiring, connections, ECM
P1062 10341 Variation in valve timing ( VVT ), bank 1 -
emergency mode ( Limp - Home ) - extreme positions are not reached
Wiring, connections, ECM
P1063 10341 Variation in valve timing ( VVT ), bank 1 -
emergency mode ( Limp - Home ) - air flow sensor ( MAF ), incorrect signal
Wiring, connections, flow sensor air ( MAF ), ECM
P1064 10342 Variation of valve timing ( VVT ) - comparison
start / home positions - malfunction electrical circuit Wiring, connections
P1065 10227 Variation in valve timing ( VVT ) - expiration
Standby time ( timeout ), no signal - fault data bus CAN Wiring, connections
P1066 10227 Variation in valve timing ( VVT ) - control
messages - electrical circuit malfunction Wiring, connections
P1071 10334 The control unit for the variable valve timing system, bank 1 - internal malfunction
Phase change system control unit gas distribution
P1072 10335 The control unit for the variable valve timing system, bank 2 - internal malfunction
Phase change system control unit gas distribution
P1083 202 Heated oxygen sensor 1, bank 1 - range / performance
Wiring, leaks in the intake / exhaust system, low fuel level, fuel pressure, e / m accumulator valve
fuel vapor, injector (s), heated oxygen sensor, ECM
P1084 202 Heated oxygen sensor 1, bank 1 - range / performance
Wiring, leaks in the intake / exhaust system, low fuel level, fuel pressure, e / m accumulator valve
fuel vapor, injector (s), heated oxygen sensor, ECM
P1085 203 Heated oxygen sensor 1, bank 2 - range / performance
Wiring, leaks in the intake / exhaust system, low fuel level, fuel pressure, e / m accumulator valve
fuel vapor, injector (s), heated oxygen sensor, ECM
P1086 203 Heated oxygen sensor 1, bank 2 - range / performance
Wiring, leaks in the intake / exhaust system, low fuel level, fuel pressure, e / m accumulator valve
fuel vapor, injector (s), heated oxygen sensor, ECM
P1087 229 / 10015 Heated Oxygen Sensor 1 Bank 1 - Lean mixture, low speed
Wiring, leaks in the intake / exhaust system, low fuel level, fuel pressure, e / m accumulator valve
fuel vapor, injector (s), heated oxygen sensor, ECM
P1088 229 / 10015 Heated Oxygen Sensor 1, Bank 1 - Rich, Slow Acting
Wiring, leaks in the intake / exhaust system, low fuel level, fuel pressure, e / m accumulator valve
fuel vapor, injector (s), heated oxygen sensor, ECM
P1089 230 / 10021 Heated Oxygen Sensor 1 Bank 2 - Lean mixture, low speed
Wiring, leaks in the intake / exhaust system, low fuel level, fuel pressure, e / m accumulator valve
fuel vapor, injector (s), heated oxygen sensor, ECM
P1094 230 / 10021 Heated Oxygen Sensor 1, Bank 2 - Rich, Slow Acting
Wiring, leaks in the intake / exhaust system, low fuel level, fuel pressure, e / m accumulator valve
fuel vapor, injector (s), heated oxygen sensor, ECM
P1100 57 Air flow sensor (MAF) - high input signal
Wiring, Mass Air Flow (MAF) Sensor, ECM
P1111 11 / 10125 Coolant temperature sensor, outlet
radiator hose - malfunction Wiring, connector (s), temperature sensor Coolant, ECM
P1112 11 / 10125 Coolant temperature sensor, outlet radiator hose - malfunction
Wiring, connector (s), temperature sensor Coolant, ECM
P1115 10122 Ambient air temperature sensor - electrical circuit malfunction
Wiring, ambient temperature sensor, ECM
P1117 57 Air flow sensor (M AF) / air flow sensor
(VAF) Bank 2 - Low Input
Wiring, connector (s), MAF sensor / VAF sensor
P1118 57 Air flow sensor (M AF) / air flow sensor
(VAF) Bank 2 - High Input Wiring, connector (s), MAF sensor / VAF sensor
P1120 114 / 10247 Accelerator pedal position sensor - circuit malfunction
Wiring, accelerator pedal position sensor, ECM
P1121 117 / 10248 Accelerator pedal position sensor 1 - circuit malfunction
Wiring, accelerator pedal position sensor, ECM
Р1122 110 / 10231 Accelerator pedal position sensor 1 - low input level Wiring short to ground
accelerator pedal position sensor
Р1123 110 / 10231 Accelerator Pedal Position Sensor 1 - High input level
Wiring short to "+", accelerator pedal position sensor
P1130 10017 Heated oxygen sensor 2, bank 1 - malfunction during dynamic test
Wiring, heated oxygen sensor, ECM
P1131 10023 Heated oxygen sensor 2, bank 2 - incorrect operation during dynamic test
Wiring, heated oxygen sensor, ECM
Р1134 13/25 / 37 Heated oxygen sensor 1, bank 1 - incorrect signal
Wiring, heated oxygen sensor, ECM
R1135 13/25 / 37 Heated Oxygen Sensor 1 Bank 1 - Low voltage
Wiring, heated oxygen sensor, ECM
Р1136 13/25 / 37 Heated Oxygen Sensor 1 Bank 1 High Voltage Wiring, heated oxygen sensor, ECM
P1137 14/79 Heated oxygen sensor 2, bank 1 - incorrect signal Wiring, heated oxygen sensor, ECM
P1138 14/79 Heated oxygen sensor 2, bank 1 - low voltage Wiring, heated oxygen sensor, ECM
P1139 14/79 Heated oxygen sensor 2, bank 1 - high voltage Wiring, heated oxygen sensor, ECM
P1140 73 Air flow sensor (M AF) / air flow sensor (VAF) - incorrect signal
Wiring, connector (s), MAF sensor / VAF sensor
P1143 215 Heated oxygen sensor 2, bank 1 - high signal level
Wiring short to +, catalytic converter, high fuel pressure, heated oxygen sensor
P1144 215 Heated oxygen sensor 2, bank 1 - low signal level
Wiring short to ground poor contact, leaking system exhaust, low fuel pressure, heated oxygen sensor
P1149 216 Heated oxygen sensor 2, bank 2 - high signal level
Short-circuit wiring of n and "+", the catalytic converter, the high fuel pressure, heated oxygen sensor
P1150 216 Heated oxygen sensor 2, bank 2 - low signal level Wiring short to ground
poor contact, leaking system exhaust, low fuel pressure, heated oxygen sensor
P1151 5/38/55 Heated oxygen sensor 1, bank 2 - incorrect signal Wiring, heated oxygen sensor, ECM
P1152 5/38/55 Heated oxygen sensor 1, bank 2 - low voltage Wiring, heated oxygen sensor, ECM
P1153 5/38/55 Heated oxygen sensor 1, bank 2 - high voltage Wiring, heated oxygen sensor, ECM
P1155 4/61 Heated oxygen sensor 2, bank 2 - incorrect signal Wiring, heated oxygen sensor, ECM
P1156 4/61 Heated oxygen sensor 2, bank 2 - low voltage Wiring, heated oxygen sensor, ECM
P1157 4/61 Heated oxygen sensor 2, bank 2 - high voltage Wiring, heated oxygen sensor, ECM
P1158 28 Fuel balance (FT), bank 1 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1159 28 Fuel balance (FT), bank 1 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1160 29 Fuel Balance (FT) Bank 2 - Range / Performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1161 29 Fuel Balance (FT) Bank 2 - Range / Performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1168 15 Fuel balance after catalytic neutralization Topa (FT), bank 1 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1170 21 Fuel balance after catalytic neutralization Topa (FT), bank 2 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1171 196 Barometric Pressure Sensor - Adaptive Learning Wiring, Barometric Pressure Sensor, ECM
P1172 196 Barometric Pressure Sensor - Adaptive Learning Wiring, Barometric Pressure Sensor, ECM
P1173 196 Atmospheric pressure sensor - adaptive learning Learning procedure not completed
P1178 216 Heated oxygen sensor 1, bank 1 - slow switching Wiring, heated oxygen sensor, ECM
P1179 217 Heated oxygen sensor 1, bank 2 - slow switching Wiring, heated oxygen sensor, ECM
P1184 218 Heated oxygen sensor 1, bank 1 - no response Wiring, heated oxygen sensor
P1185 219 Heated oxygen sensor 1, bank 2 - no response Wiring, heated oxygen sensor
P1188 174 Mixture ratio sensor 1, bank 1 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1189 175 Mixture ratio sensor 1, bank 2 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1200 24 Mixture ratio sensor, out of adaptation, bank1 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1201 24 Mixture ratio sensor, out of adaptation, bank1 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1202 25 Mixture ratio sensor, out of adaptation, bank2 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1203 25 Mixture ratio sensor, out of adaptation, bank2 - range / performance
Wiring, connectors, intake / fuel system, injectors, heated
oxygen sensor, air flow sensor (MAF), coolant temperature sensor, e / m EVAP canister valve, ECM
P1204 10277 Heated oxygen sensor 2, bank 1 - electrical circuit malfunction
Wiring, heated oxygen sensor
P1205 10278 Heated oxygen sensor 2, bank 2 - electrical circuit malfunction
Wiring, heated oxygen sensor
P1222 111 / 10232 Accelerator pedal position sensor, channel 2 - low input Wiring short to ground accelerator pedal position sensor
P1223 111 / 10232 Accelerator pedal position sensor, channel 2 - high input
Wiring short to "+", accelerator pedal position sensor
P1247 10461 Atmospheric pressure - incorrect signal Wiring, ECM
P1314 202/203 Fuel balance (FT) - deviates at low fuel level
Wiring, low fuel level, fuel pressure, system leak intake / exhaust, injector (s), heated oxygen sensor, e / 'm fuel vapor accumulator valve, coolant temperature sensor, ECM
P1314 227/228 Fuel balance (FT) - deviates at low fuel level Wiring, low fuel level, fuel pressure, system leak
intake / exhaust, injector (s), heated oxygen sensor, e / m fuel vapor accumulator valve, coolant temperature sensor, ECM
P1315 10086 Camshaft Position Sensor A, Bank 1 - incorrect signal Wiring, camshaft position sensor, ECM
P1316 10086 Camshaft Position Sensor A, Bank 1 - incorrect signal Wiring, camshaft position sensor, ECM
P1317 15 Drive of the variable valve timing system (VVT) V - range / performance
Wiring, variable valve timing actuator
P1318 10087 Camshaft Position Sensor B, Bank 1 - incorrect signal
Wiring, camshaft position sensor, ECM
P1319 10087 Camshaft Position Sensor B, Bank 1 - incorrect signal
Wiring, camshaft position sensor, ECM
P1326 10422 Camshaft Position Sensor A, Bank 1 - reference sync signal, out of range
Wiring, camshaft position sensor, ECM
Р1327 59/211 / 10211 Knock Sensor 2 Bank 1 - Input Low signal
Wiring, knock sensor incorrectly attached, knock sensor
P1328 211 / 10211 Knock Sensor 2 Bank 1 - Input High signal
Wiring, knock sensor incorrectly attached, knock sensor
P1329 10212 Knock sensor 3 - low input signal Wiring, incorrect mounting of the knock sensor, knock sensor
P1330 10212 Knock sensor 3 - high input signal Wiring, incorrect mounting of the knock sensor, knock sensor
P1331 10424 Camshaft position sensor B, bank 1 - reference sync signal, out of range
Wiring, camshaft position sensor, ECM
P1332 213 / 10213 Knock sensor 4 - low input signal Wiring, knock sensor improper mounting, knock sensor
P1333 213 / 10213 Knock sensor 4 - high input level Wiring, knock sensor improper mounting, knock sensor
P1338 10088 Camshaft Position Sensor A, Bank 1 - incorrect positioning
Wiring, camshaft position sensor, ECM
P1339 10092 Camshaft Position Sensor B, Bank 1 - incorrect positioning
Wiring, camshaft position sensor, ECM
P1340 62/213 Multiple misfires on start-up Wiring, low fuel level, ignition system / fuel system, injector ^), spark plugs, ignition coil (s), mechanical failure
P1341 62/204 Multiple misfiring during cut-off fuel supply Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1342 50/205 Misfire after start - cylinder 1 Wiring, low fuel level, ignition system / fuel system, injector, spark plug, ignition coil, mechanical failure
P1342 238 / 10,050 Misfire After Start - Cylinder 1 Wiring, Low Fuel Level, Ignition System / Fuel System, Injector, Spark Plug, Ignition Coil, mechanical failure
P1343 50/196 Misfire at fuel cut-off - cylinder 1 Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1343 238 / 10,050 Fuel misfire misfire - cylinder 1 Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1344 57/206 Misfire after start - cylinder 2 Wiring, low fuel level, ignition system / fuel system, injector, spark plug, ignition coil, mechanical failure
P1344 239 / 10054 Misfire after start - cylinder 2 Wiring, low fuel level, ignition / fuel system, injector, spark plug, ignition coil, mechanical failure
P1345 57/197 Misfire during fuel cut-off - cylinder 2 Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
Р1345 239 / 10054 Fuel misfire misfire - cylinder 2 Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1346 55/207 Misfire after start - cylinder 3 Wiring, low fuel level, ignition system / fuel system, injector, spark plug, ignition coil, mechanical failure
Р1346 240 / 10052 Misfire after Start - Cylinder 3 Wiring, Low Fuel Level, Ignition System / Fuel System, Injector, Spark Plug, Ignition Coil, mechanical failure
P1347 55/198 Misfire during fuel cut-off - cylinder 3
Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1347 240 / 10052 Fuel misfire misfire - cylinder 3
Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1348 52/208 Misfire after start - cylinder 4 Wiring, low fuel level, ignition system / fuel system, injector, spark plug, ignition coil, mechanical failure
Р1348 241 / 10055 Misfire After Start - Cylinder 4 Wiring, Low Fuel Level, Ignition System / Fuel System, Injector, Spark Plug, Ignition Coil, mechanical failure
P1349 52/199 Misfire during fuel cut-off - cylinder 4 Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1349 241 / 10055 Fuel misfire misfire - cylinder 4
Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1350 51/209 Misfire after start - cylinder 5 Wiring, low fuel level, ignition system / fuel system, injector, spark plug, ignition coil, mechanical failure
Р1350 242 / 10051 Misfire after Start - Cylinder 5 Wiring, Low Fuel Level, Ignition System / Fuel System, Injector, Spark Plug, Ignition Coil, mechanical failure
P1351 51/200 Misfire with fuel cut-off - cylinder 5
Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1351 242 / 10051 Fuel misfire misfire - cylinder 5
Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1352 54/210 Misfire after start - cylinder 6 Wiring, low fuel level, ignition system / fuel system, injector, spark plug, ignition coil, mechanical failure
Р1352 243 / 10053 Misfire After Start - Cylinder 6 Wiring, Low Fuel Level, Ignition System / Fuel System, Injector, Spark Plug, Ignition Coil, mechanical failure
P1353 54/201 Misfire during fuel cut-off - cylinder 6 Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
Р1353 243 / 10053 Fuel misfire misfire - cylinder 6
Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1354 56/211 Misfire after start - cylinder 7 Wiring, low fuel level, ignition system / fuel system, injector, spark plug, ignition coil, mechanical failure
P1355 56/202 Misfire when cutting off the fuel supply - cylinder 7
Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1356 53/212 Misfire after start - cylinder 8 Wiring, low fuel level, ignition system / fuel system, injector, spark plug, ignition coil, mechanical failure
P1357 53/203 Misfire during fuel cut-off - cylinder 8
Wiring, Low Fuel Level, Ignition / Fuel System, Intake System Leaky , Mechanical malfunction
P1378 10238 Self-test of the electronic control unit engine - bank 2, detonation control system malfunction
Wiring, knock sensor, ECM
P1379 10239 Self-test of the electronic control unit
engine - bank 2, detonation control system malfunction Wiring, knock sensor, ECM
P1380 10217 Self-test of the electronic control unit
engine - bank 2, detonation control system malfunction Wiring, knock sensor, ECM
Р1381 215 / 10215 Self-test of the electronic control unit
engine - bank 1, detonation control system malfunction Wiring, knock sensor, ECM
Р1382 216 / 10216 Self-test of the electronic control unit engine - bank 1, detonation control system malfunction Wiring, knock sensor, ECM
P1386 10214 Self-test of the electronic control unit
engine - bank 1, detonation control system malfunction Wiring, knock sensor, ECM
P140A 10080 / 10081 Exhaust Air System Bank 1 & 2 - Insufficient Recirculation Hose ( s ) connection , delivery valve air outlet, air pump for release
P140B 10080 Exhaust air supply system, banks 1 and 2 - insufficient recirculation
Hose ( s ) connection , delivery valve air outlet, air pump for release
P140C 10081 Exhaust air supply system, bank 1 and 2 - insufficient level of recirculation
Hose ( s ) connection , delivery valve air outlet, air pump for release
R1413 35/84 / 10084 Exhaust Air Pump Relay - Low Wiring, connector, feed pump relay air outlet
R1414 35/84 / 10084 Exhaust air pump relay - high signal
Wiring, connector, feed pump relay air outlet
P1415 10080 Air flow sensor (M AF) / air flow sensor (VAF) - circuit malfunction
Wiring, connector (s), air flow sensor (M AF) / air flow sensor (VAF)
P1429 10201 Fuel tank leak diagnostic unit - heater Wiring, fuel tank leak diagnostic unit
P1430 10201 Fuel tank leak diagnostic unit - heater low output signal
Wiring, fuel tank leak diagnostic unit
P1431 10201 Fuel tank leak diagnostic unit - high heater output level Wiring, fuel tank leak diagnostic unit
P1432 171 Exhaust air supply system - incorrect consumption
Hose ( s ) connection , delivery valve air outlet, air pump for release
P1434 10189 Fuel tank leak diagnostic unit Wiring, fuel tank leak diagnostic unit
P1444 10186 Fuel tank leak diagnostic unit - open circuit of the pump control
Wiring, fuel tank leak diagnostic unit
P1445 10186 Fuel tank leak diagnostic unit - low pump control signal level
Wiring, fuel tank leak diagnostic unit
P1446 10186 Fuel tank leak diagnostic unit - high
pump control signal level Wiring, fuel tank leak diagnostic unit
P1447 10189 Fuel tank leak diagnostic unit - too
high pump amperage when checking Wiring, diagnostic unit
P1448 10189 Fuel tank leak diagnostic unit - too
low pump amperage Wiring, fuel tank leak diagnostic unit
Р1449 10189 / 10775 Fuel tank leak diagnostic unit - too
high pump amperage Wiring, fuel tank leak diagnostic unit
Р1449 10002 Block for diagnostics of leaks in the fuel tank - open circuit of the e / m valve control
Wiring, fuel tank leak diagnostic unit
P1451 10002 Fuel tank leak diagnostic unit - low
e / m valve control signal level Wiring, fuel tank leak diagnostic unit
P1452 10002 Fuel tank leak diagnostic unit - high
e / m valve control signal level Wiring, fuel tank leak diagnostic unit
P1453 10084 Exhaust air supply system - electrical fault
Wiring, connectors, feed pump relay air outlet, air pump for release
P1500 211 Idling speed control drive
- the drive is stuck in the open position Idling speed control drive
P1501 211 Idle speed control drive the actuator is stuck in the closed position
Idling speed control drive
P1502 2/27 / 10198 Idling speed control drive, closing control winding - high signal level
Wiring, connector (s), control actuator idle speed, ECM
P1503 2/27 / 10198 Idling speed control actuator, closing control coil - low signal
Wiring, connector (s), control actuator idle speed, ECM
P1504 2/27 / 10198 Idling speed control drive, closing control winding - open circuit
Wiring, connector (s), control actuator idle speed, ECM
Р1506 29/53 / 10199
Idle speed control drive, opening control winding - high signal level
Wiring, connector (s), control actuator idle speed, ECM
Р1507 29/53 / 10199
Idle Speed Control Actuator, Opening Control Coil - Low signal
Wiring, connector (s), control actuator idle speed, ECM
Р1508 29/53 / 10199
Idling speed control drive, opening control winding - open circuit
Wiring, connector (s), control actuator idle speed, ECM
P1509 29 Idling speed control drive malfunction when opening
Wiring, frequency control drive idle rotation
P1510 10461 Idling speed control drive the drive is stuck Wiring, mechanical failure
P1511 10270 Intake manifold geometry change system - electrical fault Wiring, ECM
P1512 124 /10270 Intake manifold change system -low signal levelWiring, ECM
P1513 124 /10270 Intake manifold change system -high signal level Wiring, ECM
P1523 21/165 Drive of the variable valve timing system (VVT) A, bank 1 - low signal level
Wiring, variable valve timing actuator
P1524 21/165 Drive of the variable valve timing system (VVT) A, bank 1 - high signal level
Wiring, variable valve timing actuator
P1525 21/67 /72 Variable valve timing system drive (VVT) A, bank 1 - open circuit
Wiring, variable valve timing actuator
Р1525 165 / 10165 Variable valve timing system drive
(VVT) A, bank 1 - open circuit Wiring, variable valve timing actuator
Р1526 74/75 / 166 Variable valve timing system drive
(VVT) A, bank 2 - open circuit Wiring, variable valve timing actuator
P1527 166 Drive of the variable valve timing system (VVT) A, bank 2 - low signal level
Wiring, variable valve timing actuator
P1528 166 Drive of the variable valve timing system (VVT) A, bank 2 - high signal level
Wiring, variable valve timing actuator
P1529 19 Drive of the variable valve timing system (VVT) B, bank 1 - low signal level
Wiring, variable valve timing actuator
P1530 19 Drive of the variable valve timing system (VVT) B, bank 1 - high signal level
Wiring, variable valve timing actuator
P1531 2 1/2 2 Drive of the variable valve timing system (VVT) B, bank 1 - open circuit
Wiring, variable valve timing actuator
P1531 19 / 10173 Variable valve timing system drive
(VVT) B, bank 1 - open circuit Wiring, variable valve timing actuator
P1532 83/84 Drive of the variable valve timing system (VVT) B, bank 2 - open circuit
Wiring, variable valve timing actuator
P1550 2 Idling speed control drive malfunction when closing
Wiring, frequency control drive idle rotation
P1552 67 Drive of the variable valve timing system
(VVT) A, bank 1 - open circuit Wiring, variable valve timing actuator
P1556 72 Air conditioning compressor - low signal Wiring
P1560 22 Drive of the variable valve timing system
(VVT) B, bank 1 - open circuit Wiring, variable valve timing actuator
P1565 21 Multifunction steering wheel control communication error
Wiring, buttons "+" and pressed simultaneously
P1569 74 Drive of the variable valve timing system (VVT) A bank 2 - open circuit
Wiring, variable valve timing actuator
P1573 75 Drive of the variable valve timing system
(VVT) A bank 2 - low signal level Wiring, variable valve timing actuator
P1581 83 Drive of the variable valve timing system
(VVT) B, bank 2 - open circuit Wiring, variable valve timing actuator
P1585 149 Random / multiple cylinder (s) - skip ignition
Low fuel level, ignition / fuel system, injector (s), intake leaks , mechanical failure
P1594 84 Drive of the variable valve timing system
(VVT) B, bank 2 - open circuit Wiring, variable valve timing actuator
P16A0 10288 ECM - internal malfunction, control error sums ECM
P16A1 10288 ECM - internal malfunction, control error sums ECM
P16A2 10288 ECM - internal malfunction, control error sums ECM
P16AZ 10345 ECM - internal malfunction, ECM memory error
P16A4 10346 ECM - internal malfunction, ECM knock sensor bus
P16A5 10347 ECM - internal malfunction, bus of the ECM output stage
P16A6 10401 Self-test of the electronic control unit
engine - monitoring the speed control system Wiring, ECM
P16A7 10402 Self-test of the electronic control unit engine - air flow sensor monitoring (MAF)
Wiring, Mass Air Flow (MAF) Sensor, ECM
P16A8 10402 Self-test of the electronic control unit
engine - throttle position monitoring Wiring, throttle position sensor dampers, ECM
P16A9 10404 Self-test of the electronic control unit engine - malfunction Wiring, ECM
Р16В0 10405 Self-test of the electronic control unit motor - pedal position monitoring
Wiring, accelerator pedal position sensor, ECM
Р16В1 10410 Self-test of the electronic control unit engine - air bypass control system
idling - malfunction Wiring, bypass control system idle air, ECM
Р16В2 10410 Self-test of the electronic control unit engine - air bypass control system idling - malfunction
Wiring, bypass control system idle air, ECM
Р16ВЗ 10411 Self-test of the electronic control unit motor - torque control Wiring, ECM
Р16В4 10411 Self-test of the electronic control unit
engine - distance monitoring (speed control system) Wiring, ECM
Р16В5 10411 Self-test of the electronic control unit
engine - sequential manual transmission monitoring Wiring, ECM
Р16В6 10411 Self-test of the electronic control unit
engine - monitoring the traction control system Wiring, ECM
Р16В7 10412 Self-test of the electronic control unit
engine - monitoring the torque converter clutch Wiring, ECM
Р16В8 10412 Self-test of the electronic control unit
engine - monitoring the torque converter clutch Wiring, ECM
Р16В9 10412 Self-test of the electronic control unit motor - torque loss monitoring Wiring, ECM
Р16С0 10412 Self-test of the electronic control unit
engine - monitoring of the stability control system Wiring, ECM
Р16С1 10413 Self-test of the electronic control unit motor - torque control Wiring, ECM
Р16С2 10417 Self-test of the electronic control unit engine - speed limit control Wiring, ECM
R16SZ 10418 Self-test of the electronic control unit
engine - limiting the speed of the crankshaft Wiring, ECM
Р1602 48/122 / 231 Self-test of the electronic control unit engine - malfunction ECM
P1603 49 Self-test of the electronic control unit motor - torque control Wiring, ECM
P1604 50/51 Self-test of the electronic control unit engine - crankshaft speed monitoring Wiring, ECM
P1611 129 /10220 /10505 Electronic control unit for automatic transmission - malfunction
connections Wiring, TCM, ECM
P1618 10103 Self-test of the electronic control unit motor - ADC monitoring Wiring, ECM
Р1619 123 / 10140
Cooling System Thermostat Control Circuit - low signal level Wiring, coolant thermostat
Р1620 123 / 10140
Cooling System Thermostat Control Circuit - high signal level Wiring, coolant thermostat
P1622 10140 Cooling system thermostat control circuit - electrical circuit malfunction
Wiring, coolant thermostat
R1624 146 / 10048 Accelerator pedal position sensor 1 - circuit malfunction
Wiring, accelerator pedal position sensor, ECM
Р1625 147 / 10049 Accelerator pedal position sensor 2 - circuit malfunction
Wiring, accelerator pedal position sensor, ECM
P1628 10089 Electric throttle actuator - error checking the return spring, bank 1
Wiring, electric throttle, ECM
P1629 10089 Electric throttle actuator - error checking the return spring, bank 1
Wiring, electric throttle, ECM
P1631 10133 Electric throttle actuator - error checking the return spring, bank 1
Wiring, electric throttle, ECM
P1632 115 / 10134 Throttle valve - unable to adapt Wiring, adapting throttle valve, motor position sensor
throttle actuator, ECM
P1633 115 / 10134 Throttle Adaptation - Incorrect Emergency Mode Position ( Limp-Home )
Wiring, throttle adaptation, motor position sensor throttle actuator, ECM
P1634 115 / 135/136 Throttle Adaptation - Spring Return Test Failed Bank 1
Wiring, mechanical failure, ECM
Р1634 10133 / 10134 / 10145 Throttle Adaptation - Spring Return Test Failed Bank 1
Wiring, mechanical failure, ECM
P1635 115 / 10134 / 10419 Throttle Adaptation - Not Adjusted limiter
Wiring, throttle adaptation, motor position sensor throttle actuator, ECM
P1636 109/132 / 10132 Throttle control circuit, bank 1 - circuit malfunction
Wiring, TPM sensor, ECM
P1637 130/162 Throttle position control - control deviation, bank 1 Wiring, TPM sensor, ECM
Р1637 10066 / 10130 Throttle Position Control - Control Deviation Bank 1
Wiring, TPM sensor, ECM
P1638 131/160 Throttle position control - temporary stuck throttle, Bank 1
Wiring, mechanical failure, ECM
Р1638 10064 / 10131 Throttle Position Control - Temporary Sticky Throttle Bank 1
Wiring, mechanical failure, ECM
P1639 131/161 Throttle Position Control - Constant Sticking Throttle, Bank 1
Wiring, mechanical failure, ECM
Р1639 10065 / 10131 Throttle Position Control - Constant Sticking Throttle Bank 1
Wiring, mechanical failure, ECM
P1640 155/156 Electronic engine control unit - error RAM / ROM ECM
P1653 134 Torque (transmission) - incorrect signal Wiring, TCM
P1654 signal 134 data bus CAN - timeout ( timeout ) Wiring, ECM
P1663 155/156 Electronic immobilizer control unit - incorrect coding
Invalid / damaged key
P1670 134 Intervention of the transmission control system - invalid signal Wiring, TCM
P1675 135 / 10149 Electric throttle actuator, initial check - need for adaptation
Adaptation of electric throttle actuator flaps
P1694 136 / 10145 Electric Throttle Actuator Initial Check - Spring Return and Position Check
emergency mode completed unsuccessfully Wiring, mechanical failure, ECM
P3010 10486 Heated oxygen sensor 2, bank 1 - low input level after cold start
Heated Oxygen Wiring sensor, ECM
P3011 10487 Heated oxygen sensor 2, bank 2 - low input level after cold start
Heated Oxygen Wiring sensor, ECM
P3012 10308 Heated oxygen sensor 1, bank 1 - adaptation value too high
Heated Oxygen Wiring sensor, ECM
P3013 10291 Heated oxygen sensor 1, bank 2 - adaptation value too high
Heated Oxygen Wiring sensor, ECM
P3014 10308 Heated oxygen sensor 1, bank 1 - incorrect voltage
Heated Oxygen Wiring sensor, ECM
P3015 10291 Heated oxygen sensor 1, bank 2 - incorrect voltage
Heated Oxygen Wiring sensor, ECM
P3016 10013 Heated oxygen sensor 1, bank 1 - error calibration
Heated Oxygen Wiring sensor, ECM
P3017 10005 Heated oxygen sensor 1, bank 2 - error calibration
Heated Oxygen Wiring sensor, ECM
P3018 10313 Heated oxygen sensor 1, bank 1 - malfunction of the mixture control system
Heated Oxygen Wiring sensor
P3019 10292 Heated oxygen sensor 1, bank 2 - malfunction of the mixture control system
Heated Oxygen Wiring sensor
P3020 10313 Heated oxygen sensor 1, bank 1 - incorrect signal voltage
Heated Oxygen Wiring sensor
P3021 10292 Heated oxygen sensor 1, bank 2 - incorrect signal voltage
Heated Oxygen Wiring sensor
P3022 10308 Heated oxygen sensor 1, bank 1 - communication failure
Heated Oxygen Wiring sensor
P3023 10291 Heated oxygen sensor 1, bank 2 - communication failure
Heated Oxygen Wiring sensor
P3024 10308 Heated oxygen sensor 1, bank 1 - fatal initialization error
Heated Oxygen Wiring sensor
P3025 10291 Heated oxygen sensor 1, bank 2 - fatal initialization error
Heated Oxygen Wiring sensor
P3026 10013 Heated oxygen sensor 1, bank 1 - incorrect operating temperature
Heated Oxygen Wiring sensor, ECM
P3027 10005 Heated oxygen sensor 1, bank 2 - incorrect operating temperature
Heated Oxygen Wiring sensor, ECM
P3028 10013 Heated oxygen sensor 1, bank 1 - no response
Heated Oxygen Wiring sensor, ECM
P3029 10005 Heated oxygen sensor 1, bank 2 - no response
Heated Oxygen Wiring sensor, ECM
P3040 10480 Heated oxygen sensor 2, bank 1 - lean / rich control
Heated Oxygen Wiring sensor, ECM
P3041 10481 Heated oxygen sensor 2, bank 2 - lean / rich control
Heated Oxygen Wiring sensor, ECM
P3198 10205 Coolant temperature - malfunction Wiring, coolant temperature sensor, ECM
P3199 10207 Coolant temperature - the signal does not change
Wiring, coolant temperature sensor, ECM
P320D 10621 CAN data bus monitor - timed out
Answer traction system Wiring connected control units
P3200 52615 Electronic control unit for automatic transmission, data bus
CAN - internal fault themes
P3201 52615 Electronic control unit for automatic transmission, data bus
CAN - internal fault themes
P3202 52615 Electronic control unit for automatic transmission, data bus
CAN - internal fault themes
P3203 52619 CAN data bus - malfunction Wiring, connected control units
P3204 52619 CAN data bus - malfunction Wiring, connected control units
P3205 52619 CAN data bus - malfunction Wiring, connected control units
Р3213 10505 / 10621 Monitoring data bus CAN - self test error traction system
Wiring connected control units
P3214 10505 Monitoring data bus CAN - self test error traction system
Wiring connected control units
P3238 10289 Self-test of the electronic control unit
engine - clock generator malfunction Wiring, TPU, ECM
