BMW f30 fuses and relays with full wiring diagrams
Wiring diagrams
12 volt mains
Automatic tow hitch
Virtual display
Adaptive cornering light
Side lighting
Video module
Exterior Rear Lighting
Built-in automatic heating and air conditioning system in high performance
Integrated automatic heating and air conditioning system as standard
Hybrid drive
Diagnostic socket
Head device
Hi-Fi Speakers
Speakers, stereo
N13 engine interface
N20 engine interface
N47 engine interface
N55 engine interface
Instrument cluster
Steering column switch cluster
Front contacts
Ground contacts inside the passenger compartment
Contacts with the mass. rear end
Crash Safety Module
Email Connection Module trailer equipment
Outside mirrors 1
Outside mirrors 2
Outside mirrors 3
Interior lighting
Engine cooling
Parking assistant
Front exterior halogen lights
Front exterior lighting xenon headlights
Front exterior lighting
LED headlights
Sliding sunroof
Cigarette lighter, socket
Radio
Driver's seat
Manual passenger seat
Driver seat with memory function
Power front passenger seat
Automatic engine start and stop system
Dynamic stability control system
Rear seat heating system
Burglar alarm system
Supply system
Wiper, washer system
Power windows
Telecommunication
central locking
K-can tire
K-can2 tire
Flexray tire
Bus most
Lin bus
Bus pt-can2
Electromechanical power steering
Transmission control system
Electrochromic Mirror

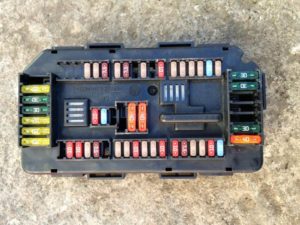

Relay and fuse box in the engine compartment
It is located on the right side, closer to the windshield. For access remove a protective cover.
It looks like this.
Description table

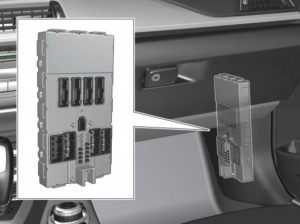

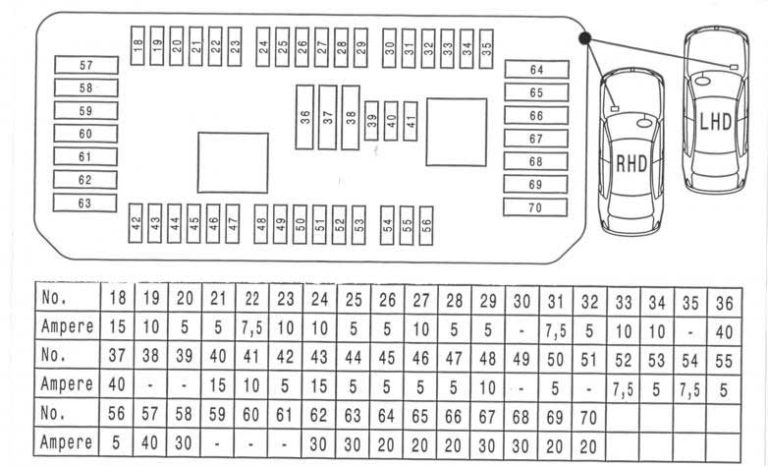

Block in the interior of the BMW F30
It is located on the front desk on the passenger side.

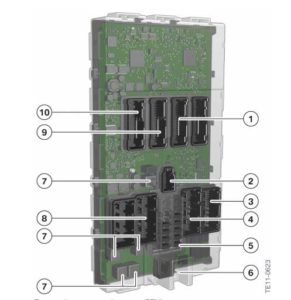

- 54 pin connector
- 12 pin connector
- 42 pin connector
- 54 pin connector
- Circuit breakers
- Connector (1 pin, plus terminal)
- Relay
- 54 pin connector
- 54 pin connector
- 54 pin connector
Fuses responsible for:
steering column switch cluster (SZL)
driver assistance systems control panel
lighting control panel
LED headlight driver module
rear electronic module (REM)
OBD II connector, IHKA
electronic door handle electronic unit
power windows
central locking.
Relay:
power window driver
power front
central locking
headlight washers
starter
horn sound
wiper at a speed of 1 / 2m

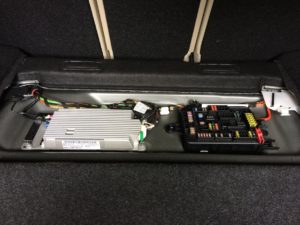

Luggage units
One unit is located behind the casing on the right side, near the battery.
The other is centered under the skin. More details in the video, a little lower.

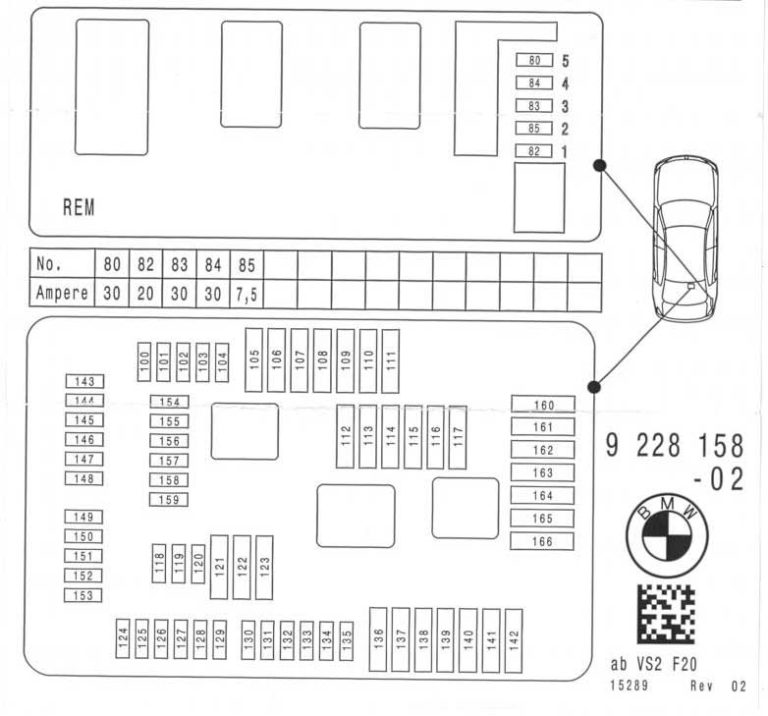

Your exact circuit with fuses is folded under the trunk floor, inserted into a special place on the fuse box on top (folded paper). We provide for review one of the versions.
